Automatic Bar Feeder Small CNC Lathe Machine

Our company focuses on the manufacture of CNC lathes. Especially the Automatic Bar Feeder Small CNC Lathe Machine's good configuration and precision fittings, the machine will produce small precision metal parts accurately and quickly.

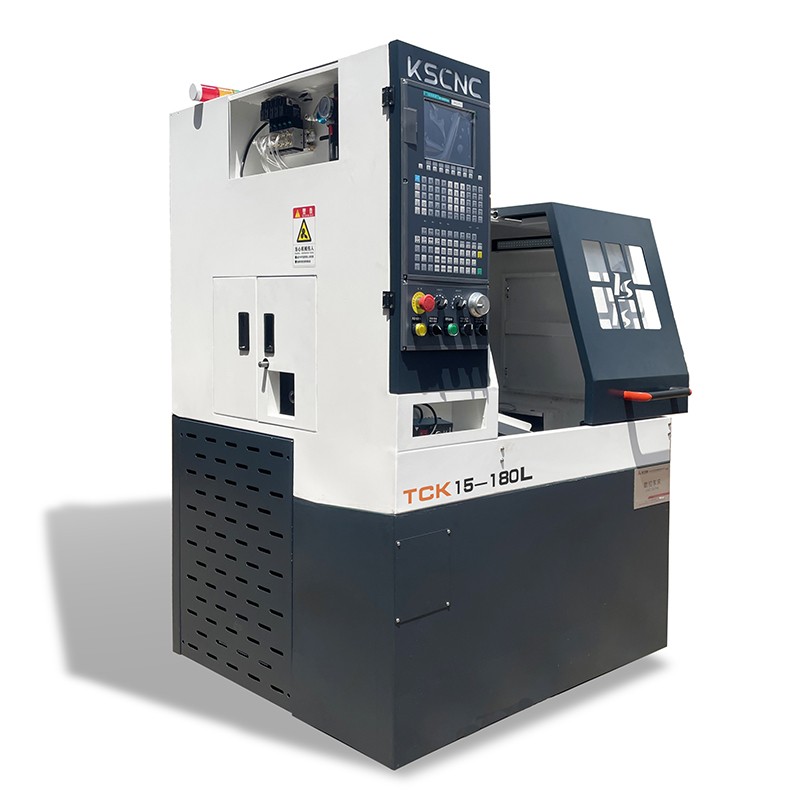

Model:TCK15-180L

Send Inquiry

Product Description

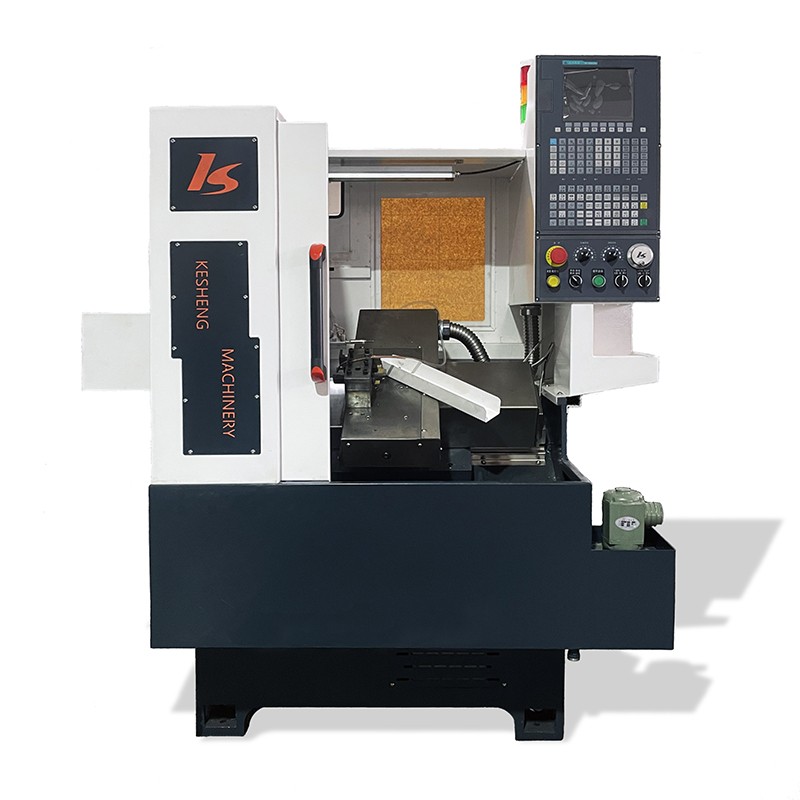

The Detailed Product Introduction of automatic bar feeder small CNC lathe machine

The quality automatic bar feeder small CNC lathe machine with a casting base will perform better on rigidity and shock resistance, much easier for chips removal.
Much higher processing and efficiency will be guaranteed with good configuration (spindle from Taiwan (6000RPM), precision ball screw, rail carriage, semi-enclosed sheet metal, backward system panel, and etc.). The machine will be definitely and easily applied to production of small precision metal parts.

The standard configuration on automatic bar feeder small CNC lathe machine

Spindle：Spindle unit from Taiwan
System：Wind CNC 2000TBV
Inverter：SINEE
Linear Guide：CSK
Bearing：HRB
Ball Screw：QIJIAN/QIXUAN
Motor：Servomotor

The parameter on automatic bar feeder small CNC lathe machine

		Unit	TCK15-180L	TCK25-180L
Production Capability	Max. swing over bed	mm	φ150	φ150
	Max. swing over cross slide	mm	φ60	φ60
	Processing length	mm	180	180
	Dia. of the spindle hole	mm	φ15	φ25
Spindle	Jig	N/A	Collet	Collet
	Speed range	Rpm	300-6000 (Spindle unit)	300-6000 (Spindle unit)
	End specification	N/A
Feeding	X-axis fast moving speed	m/min	15m	15m
Feeding	Z-axis fast moving speed	m/min	15m	15m
Stroke	X-axis max. trave	mm	180	180
Stroke	Z-axis max. trave	mm	180	180
Accuracy	X/Z axis repeated positioning accuracy	mm	0.005	0.005
Motor	Servomotor	kw	1.5	1.5
Others	Clamping mode	N/A	Pneumatic clamping	Pneumatic clamping
	Tool holder	N/A	Cutter arrangement	Cutter arrangement
	Tool size	mm	16	16
	Number of tool loaded	pcs	5	5
	Overall dimensions(LWH)	mm	13509101560	13509101560
	Height(From the base to spindle)	mm	970	970
	N.W.	kg	700	700

Features on automatic bar feeder small CNC lathe machine

-Casting Base: Better performance on rigidity and shock resistance
-Slant Bed: Easy chips removal
-Spindle from Taiwan: 6000RPM
-Precision Ball Screw, Rail Carriage: Higher processing precision and efficiency (well applied to production of small precision metal hardware parts)
-Practical semi-enclosed sheet metal & backward System Panel applied: convenient operation
Optional Accessories (Vibration plate, Rack for Long Piece): Automatic feeding and processing for short or long piece will be available

Finished products
