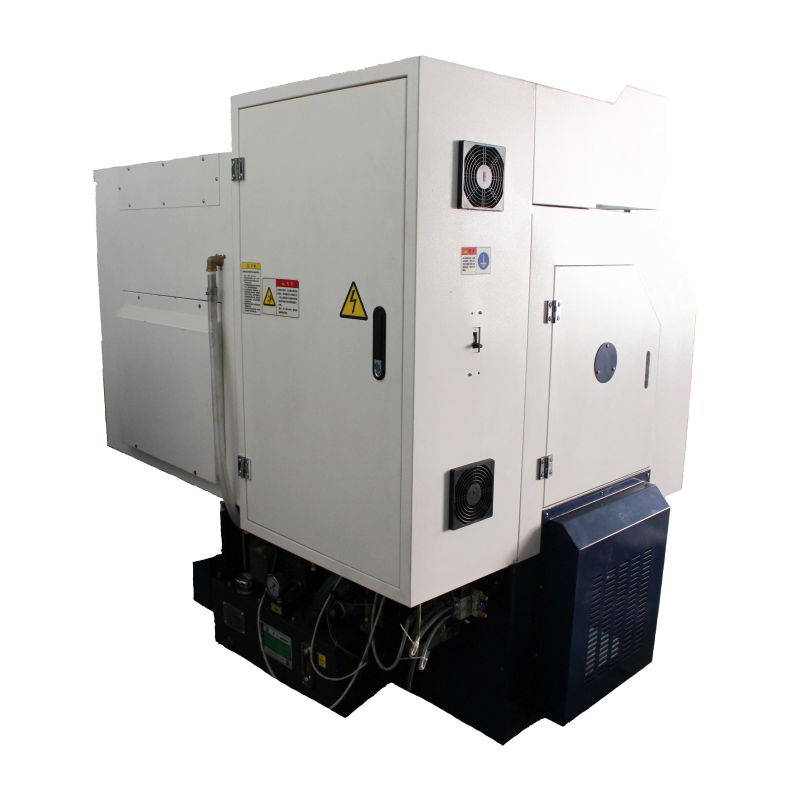

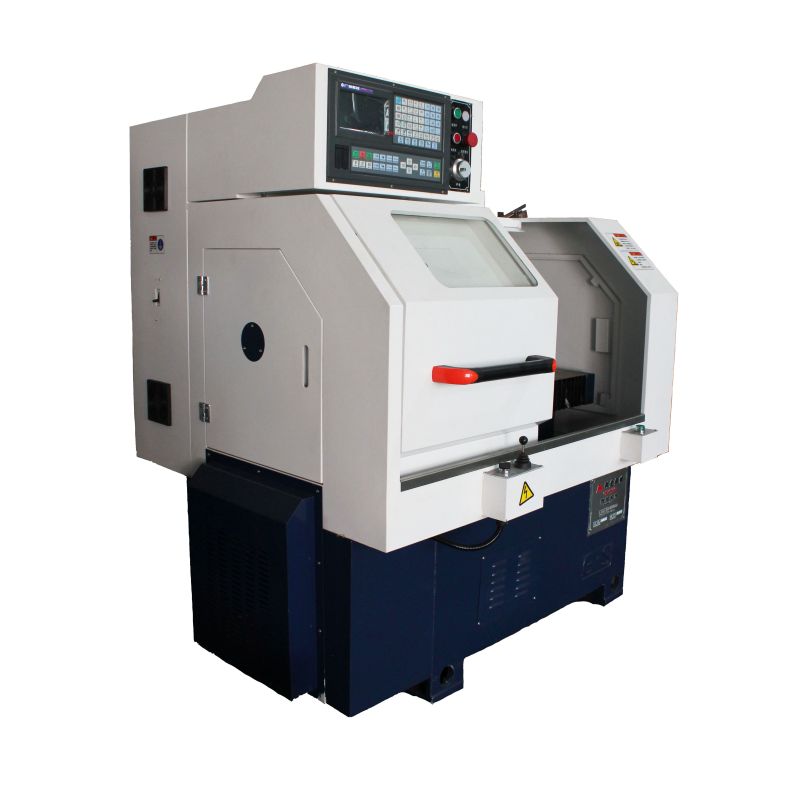

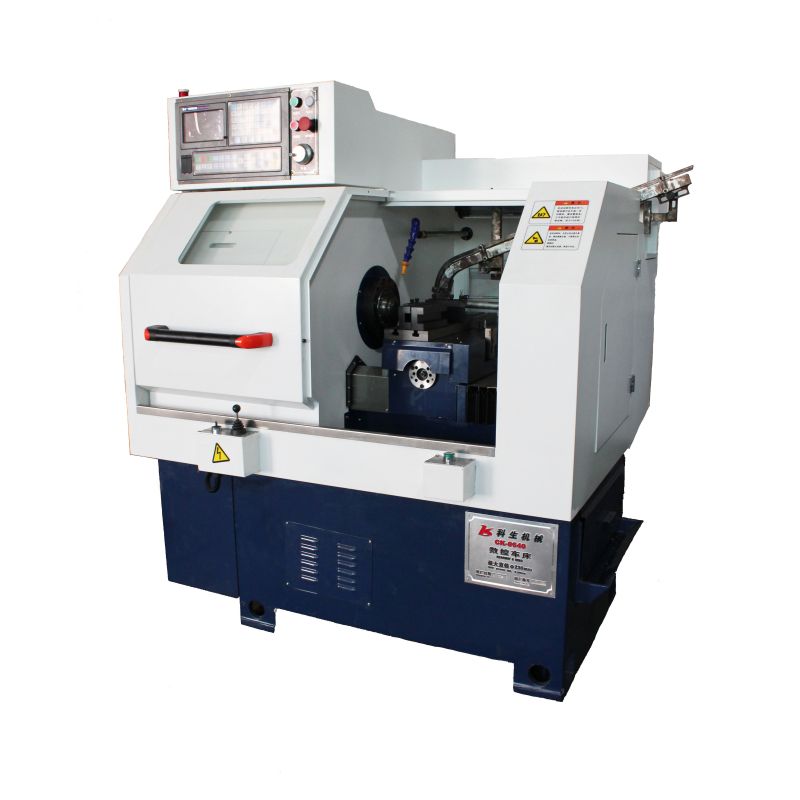

High Precision Slant Bed CNC Lathe Machine

Product Description

The Detailed Product Introduction of High Precision Slant Bed Cnc Lathe Machine

CK0640L-328L is high precision High Precision Slant Bed Cnc Lathe Machine. The machine has good dynamic performance and accurate moving precision control. The machine can be controlled continuously in two coordinates. Used for processing all kinds of short shaft and disk parts, can automatically complete the inner and outer circular surface, conical surface, arc surface, end surface and other rotating surface processing and turning thread and other functions.

The Standard Configuration on High Precision Slant Bed Cnc Lathe Machine

Spindle：Spindle unit
System：Wind 2000TCEV（Standard）
GSK（Optional）
KND（Optional）
Inverter：SINEE
Linear Guide：CSK
Bearing：HRB
Ball Screw：QIJIAN/QIXUAN
Motor：Servomotor

The Parameter On High Precision Slant Bed Cnc Lathe Machine

		Unit	CK-0640L			Unit	CK-0640L
Production Capability	Max. swing over bed	mm	φ320	Stroke	X-axis max. trave	mm	328
	Max. swing over cross slide	mm	φ70	Stroke	Z-axis max. travel	mm	300
	Processing length	mm	300	Motor	Servomotor	KW	3.7
	Dia. of the spind le hole	mm	φ40	Other	C lamp ing mode	N/A	Hydraulic clamping
Spindle	Jig	N/A	Collet/Chuck		Tool holde	N/A	Cutter arrangement
	Speed range	Rpm	4000		Tool size	mm	20
	End specification	N/A	A2-5		Number of tool loaded	pcs	7
Feedin g	X-axis fast moving speed	m/min	20m		Overall dimensions(LWH)	mm	158012501680
Feedin g	Z-axis fast moving speed	m/min	24m		Heigh t(Base to spind le)	mm	975
Accuracy	X/Z axis repeated positioning accuracy	mm	0.005		N.W	mm	1100

Features On High Precision Slant Bed Cnc Lathe Machine

1. The feed shaft is controlled by servo motor with good performance and high positioning accuracy.
2. The automatic lubrication system ensures that the moving parts of the machine work in a good lubrication state.
3. The surface of the bed ways is supersonic frequency hardened and precision ground with a long service life.
4. It is applied to various line like automobile, valve, electric tools and hardware, etc.
