High Precision Small CNC Lathe Machine

Product Description

The Detailed Product Introduction of High Precision Small CNC Lathe Machine

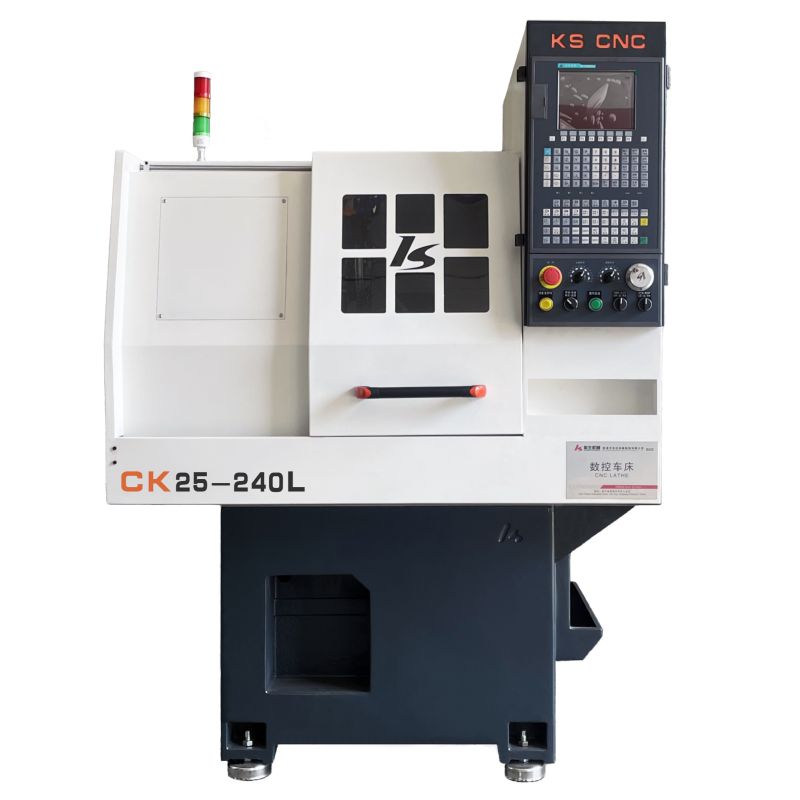

TCK25-240L high precision small CNC lathe machine is a reasonable-costing, practical type machine tools with good quality. The machine has a very wide range of usage which is suitable for internal and external turning ,tapering, circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement.

The Standard Configuration on High Precision Small CNC Lathe Machine

Spindle：Spindle unit
System：Wind 2000TCEV（Standard）
GSK（Optional）
KND（Optional）
Inverter：SINEE
Linear Guide：CSK
Bearing：HRB
Ball Screw：QIJIAN/QIXUAN
Motor：Servomotor

The Parameter On High Precision Small CNC Lathe Machine

		Unit	TCK25-200L
Production Capability	Max. swing over bed	mm	φ210
	Max. swing over cross slide	mm	φ120
	Processing length	mm	240
	Dia. of the spindle hole	mm	φ25
Spindle	Jig	N/A	Collet
	Speed range	Rpm	100-5000
	End specification	N/A
Feeding	X-axis fast moving speed	m/min	28(2510)
Feeding	Z-axis fast moving speed	m/min	28(2510)
Stroke	X-axis max. travel	mm	240
Stroke	Z-axis max. travel	mm	240
Accuracy	X/Z axis repeated positioning accuracy	mm	0.005
Motor	Servomotor	kw	1.5
Other	Clamping mode	N/A	Pneumatic clamping
	Tool holder	N/A	Cutter arrangement
	Tool size	mm	16
	Number of tool loaded	pcs	6
	Overall dimensions(LWH)	mm	110010601700
	Height(From the base to spindle)	mm	1010
	N.W		850

Features On High Precision Small CNC Lathe Machine

1.Cast mono-block, slant bed structure.
2.Heavy-duty design, machine base and bed are one-piece casting.
3.HIWIN/CSK roller type linear motion guideway.
4.High processing efficiency and high precision.
